RLKNL214HD Horizontal Baler
Trust, Commitment and Results: for operations where downtime is not an option.
Included so that your operations don't stop (at no additional cost):
Heavy Duty horizontal baler with automatic cycle, reliable and user-friendly, producing bales up to 200 kg. The RLKNL HD features a large filling opening, digital display, simple tying system, and automatic bale ejection, making it versatile and easy to operate with various waste types.
Tax excluded.
El precio incluye no solo la máquina, sino la tranquilidad de saber que durante los próximos 5 años:
- no tendrás que contratar ni presupuestar mantenimientos exigidos por la normativa vigente (RD 1215/97) y que deben estar documentados
- no tendrás que negociar reparaciones
- no tendrás que esperar a que haya disponibilidad de técnicos
- no dependerás de plazos inciertos de suministro de piezas para resolver una parada
La gestión de este equipo queda resuelta desde el inicio.
Not sure if this is the right baler?
That's perfectly normal. We'll help you confirm if it fits your volume, space, and type of waste, or we'll suggest a more suitable solution considering your operations.
Stop paying for transporting air. Reduce your pickups by 90%.
Superior profitability: High-density bales that maximize price per ton.
The savings in management pay for the machine every month.
Optimize waste handling and save on labor.
Free warehouse. 100% smooth operation.
Simple to use: Ideal for all types of operators.
Performance you can barely hear.
No loose cardboard, no fire risk.
Designed to work 24/7 without losing performance.
Reduce CO² by minimizing transport.
Total peace of mind with 5-year on-site warranty included.
RLKNL 214HD
High level of automation
Reduces labor costs in waste management and transportation.
Noise Level
9:1
Reduces labor and transportation requirements by 90%
100%
Satisfaction guaranteed
Noise Level
Materials
Paper and Cardboard
Bales up to 200kg
Foam and Textile
Plastic
Drums and Cans
Paper and Cardboard
Bales up to 200kg
Foam and Textile
Plastic
Drums and Cans
High compaction bales
Secured with twine or wire ties
Low height
Compact 2.10m design fits into tight spaces and improves warehouse organization.
Comfortable Loading
Wide door (0.82 x 1.20 m) that allows waste to be introduced without having to fold boxes.
Easy to use
Simple operation with automated functions, ideal for all types of operators.
Easy Extraction
Equipped with a hydraulic ejection door and a rope or wire tying system, the bale is safely unloaded onto a pallet.
About RLKNL 214HD
Designed as a professional solution for universal applications in the industry
Especificaciones técnicas:
Compactor
Cardboard, Plastic, Foams and Textiles, Drums and Cans
Height 1,040 m
Width 4,700 m
Depth 1,170 m
Width 1.200 m
Depth 0.800 m
1370kg
380V Three-phase
5.5 kW
140 kN
40s
Roither Maschinenbau Gesmbh/ KNL 140HD
5 years on site
5 years on site
Yes, to the facilities.
Yes, by our specialize technicians.
Yes, user training.
24 hours max.
48 hours max.
Yes, it meets the CE conformity EU requirements.
Bale specifications
Height 1,200 m
Width 0.600 m
Depth 0.800 m
150-200 kg
3h
Applied engineering to guarantee operational continuity
Every piece of equipment in the Reciclajes Logísticos range has been manufactured, sized, and validated for a specific operational scenario.
Engineering is not about selling more machinery, but about correctly defining the operational limits of each solution.
Designed for high-volume waste operations
The RLKNL214HD is a Heavy Duty horizontal baler, designed for facilities where waste is generated constantly and in large quantities. Its design offers powerful, stable compaction and is prepared for demanding work rates without adding complexity to daily operations.
Optimal use scenario
- Continuous flows of cardboard, plastic, PET, textiles, cans, and drums, where fast compaction and a tidy area are desired.
- Logistics centers, industrial facilities, and waste managers requiring constantly produced high-density bales.
- Environments seeking an automatic, robust horizontal baler designed for intensive shifts.
Key technical decisions
- High-power compaction, ready to handle large inputs without additional steps or interruptions.
- Convenient and continuous feeding, facilitating a stable material flow and improving productivity.
- Easy handling, allowing work without reorganizing waste and maintaining an agile cycle.
- Direct access to components, reducing maintenance times and ensuring operational continuity.
- Reinforced design, intended for intensive use, low wear, and long service life.
When this is NOT the right machine
- Environments with low waste generation or inconsistent inputs.
- Operations requiring small bales or manual handling.
- Facilities where a vertical baler is a better fit due to space or process type.

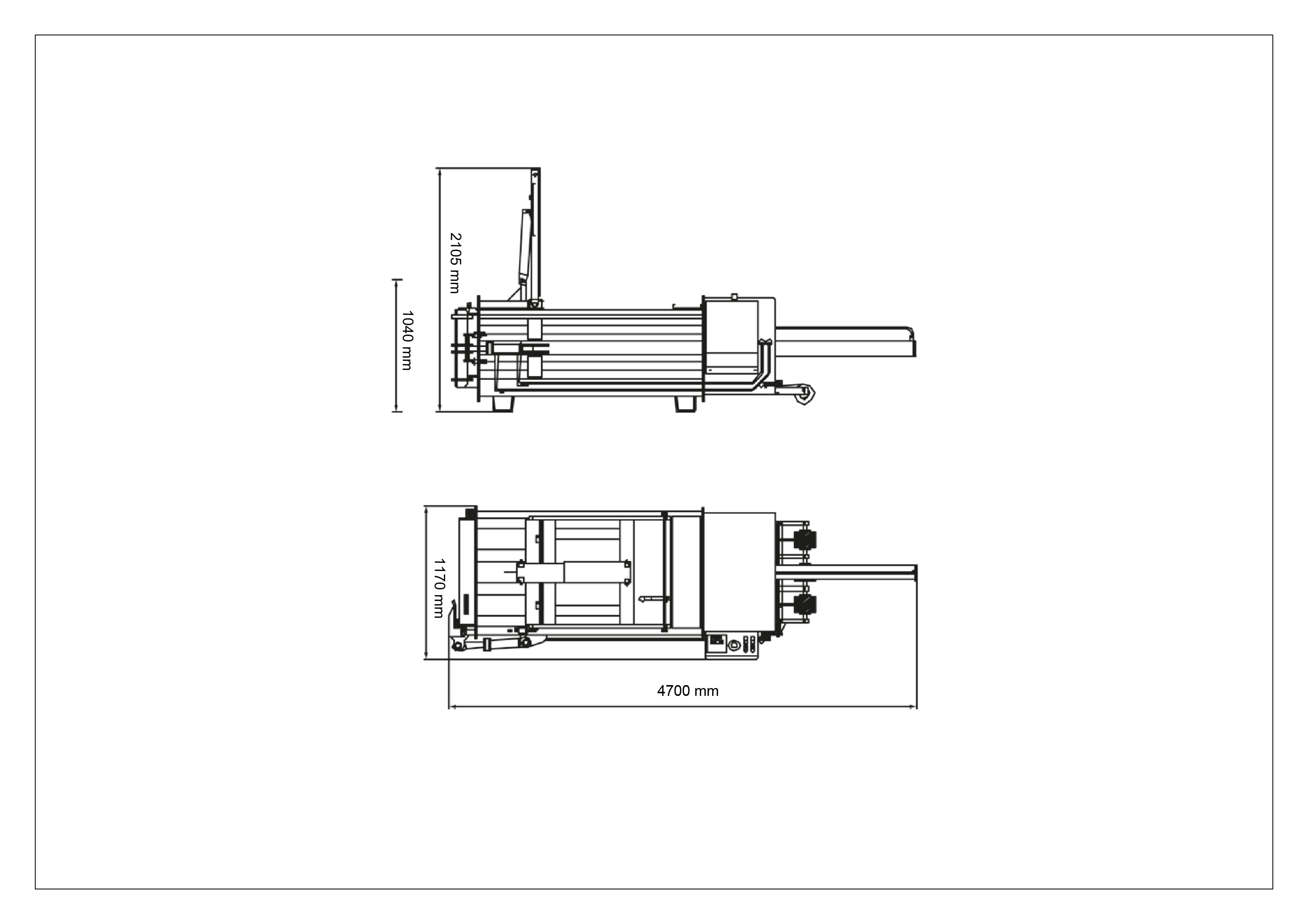

Plans and dimensions
Frequently Asked Questions
Horizontal Presses
What types of waste can I compact with a horizontal baler?
They compact cardboard, paper, plastics, garbage, municipal solid waste, PET bottles, foams, and high-volume industrial waste . Their horizontal design adapts to spaces with low ceilings and allows for the creation of large bales , offering efficiency, power, and reliability in logistics and industrial operations.
What is the difference between a vertical and a horizontal press?
- Horizontal presses allow the manufacture of large bales and They can be adapted to installations with low ceilings , making them perfect for high-volume production, combining power, reliability and efficiency.
- Vertical balers are the ideal solution for small spaces , they generate compact and easily manageable bales, and with their semi-automatic operation they are a cost-effective, simple and very versatile option for supermarkets, industries, logistics centers and the HORECA sector.
Which horizontal press is best for industrial PET?
Choosing the right horizontal baler depends primarily on the daily volume of PET and the operational requirements of the facility. Reciclajes Logísticos ' horizontal balers are designed for high-volume production , combining robustness, energy efficiency, and industrial reliability , along with after-sales service that sets them apart from international suppliers.
For PET compaction, the RLAP and RLKNL series are particularly suitable solutions, as they allow working with large volumes of material , generating stable and safe bales and optimizing the continuous flow of waste in high-demand logistics and industrial environments.
How are bales tied in horizontal presses?
The tying is done manually , with plastic strips or wire depending on the model, guaranteeing safe, compact and easy-to-handle bales even in large volumes.
